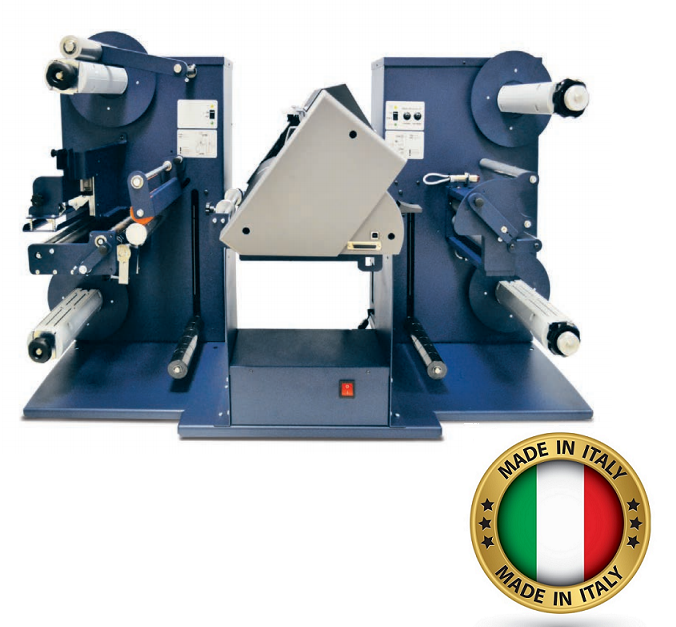

VRG22PL
Part number VRG22PL
Input / Output max. roll diameter 7.87” (200 mm)
Minimum media width 3.94” (100 mm)
Maximum media width 8.86” (225 mm)
Maximum cutting width 7.87” (200 mm)
Minimum / Maximum label length 0.39” (10 mm) / 13.77” * (350 mm)
*with limitations
Minimum slitting width 0.75” (19 mm)
Number of slitting blades up to 8
Lamination module YES
Dimensions L = 45.66” (116 cm)
H = 26.77” (68 cm)
W = 26.77” (68 cm)
Weight (estimated) 440 lb (200 kg)
Roll core size 3” (76 mm)
Maximum media thickness 10 mil (0.25 mm)
Maximum cut speed 24 in/s (600 mm/s) in all directions
Warranty One year parts and labor. Usage limitation may apply
VRG14PL
Part number VRG14PL
Input / Output max. roll diameter 7.87” (200 mm)
Minimum media width 3.94” (100 mm)
Maximum media width 5.51” (140 mm)
Maximum cutting width 4.80” (122 mm)
Minimum / Maximum label length
0.39” (10 mm) / 13.77” * (350 mm)
*with limitations
Minimum slitting width 0.75” (19 mm)
Number of slitting blades up to 6
Lamination module YES
Dimensions L = 45.66” (116 cm)
H = 26.77” (68 cm)
W = 26.77” (68 cm)
Weight (estimated) 220 lb (100 kg)
Roll core size 3” (76 mm)
Maximum media thickness 10 mil (0.25 mm)
Maximum cut speed 24 in/s (600 mm/s) in all directions
Warranty One year parts and labor.
Usage limitation may apply
