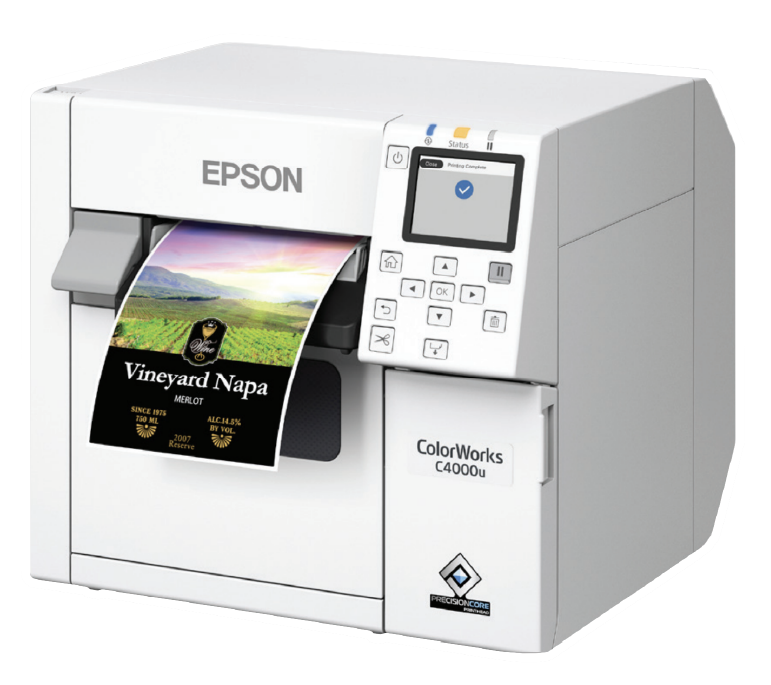

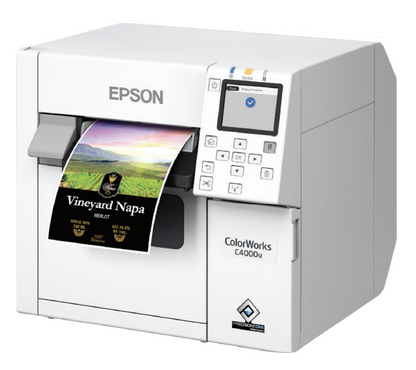

Key Features of the Epson ColorWorks® CW-C4000
The Epson ColorWorks C4000 is a compact yet powerful color inkjet label printer designed for businesses that need professional quality, on-demand label printing that’s small enough to fit on a desktop space. Ideal for a wide range of business needs from food safe product labels, to full-color visitor badges, to scannable barcode labels for healthcare equipment, the C4000 delivers exceptional print quality with sharp text, vivid colors and reliable barcode scanning.
- Space saving design
- Durable features
- High-resolution 1200 x 1200 DPI delivers
- Exceptional support
- Supports plain, matte, gloss, synthetic materials and wristbands
- Integrated auto cutter
- Remote printer management
- Ease of integration
Product Specs of the Epson ColorWorks® CW-C4000
Print Method Serial inkjet, PrecisionCore® TFP®
Print Speed Up to 3.94" per second (100 mm/sec)
Ink Type UltraChrome® DL pigment ink
Ink Colors Cyan, Magenta, Yellow, and Black (Gloss or Matte Black option)
Control Panel 2.7" full-color graphic display with 9-key pad for local configuration and operation
Indicators Power, status, and pause LEDs; beeper
Color Correction ICC color profiles, RGB spot color substitution, driver-based color adjustment
Banner Printing Supports segmented page input for large signs without gaps
Barcode Fonts UPC-A, UPC-E, JAN13 (EAN), JAN8 (EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar (Omnidirectional, Truncated, Limited, Expanded)
Two-Dimensional Code Printing PDF417, QR Code, Maxi Code, GS1 DataBar (Stacked, Stacked Omnidirectional, Expanded Stacked), DataMatrix, Aztec Code, MicroPDF417, Micro QR Code
Print Width 4.25" (108 mm) max.
Cutter Life (Cuts) Paper Liner: up to 1.5 million
Synthetic Liner: up to 0.5 million
Continuous Matte Paper: up to 0.5 million
Continuous Gloss Paper: up to 0.3 million
Continuous Synthetic: up to 0.1 million
Printer Durability Printhead: PrecisionCore, permanent
Paper-Feeding Mechanism Life: 150 km
Applications & Uses of the Epson ColorWorks® CW-C4000
Whatever your industry, the Epson ColorWorks CW-C4000 is suited for a wide range of labeling needs.
Healthcare: Print visitor badges, patient wristbands and equipment asset tags. Create safety signs.
Warehouse: Rack labels, bin labels for inventory, color labels for boxes or packaging.
Manufacturing: Printing rack and putaway labels from mobile power cart, bin labels, asset tags and tool/part labels.
Pharmacy: Print colorized prescription labels with photos of patients and medication, labels for medical tests, barcode labels for containers and solutions.
Retail/grocery: Labels for delivery or pickup orders. Personalized labels for individual orders, integrates with scale for meats and other deli items.
FAQs for the Epson ColorWorks® CW-C4000
Q: How does the CW-C4000 differ from the CW-C6000 and CW-C6500 models?
A: The CW-C4000 is an entry-level printer designed for smaller-volume labeling needs, offering high-quality output in a space-saving footprint. It fits well on a desktop, making it well suited for offices, clinics and small businesses with low to moderate print volumes.
In contrast, the CW-C6000 and CW-C6500 are built for higher-volume production environments. They support wider media (up to 4.25" on the C6000 and 8.34" on the C6500), and include features like Peel-and-Present or Auto-Cutter options for streamlined workflows. These models are ideal for manufacturing, logistics, warehouse operations, and other applications where speed and/or label widths are essential.
Q: What’s the difference between the gloss and matte editions of the CW-C4000?
A: The Epson ColorWorks CW-C4000 uses durable pigment-based inks and is available in two versions: Gloss Ink Edition and Matte Ink Edition.
- The Gloss Ink Edition uses Gloss Black Ink, which is optimized for printing on a broader range of label materials, including gloss and semi-gloss substrates.
- The Matte Ink Edition uses Matte Black Ink, which produces richer, deeper blacks on matte-finish media, resulting in sharper text and image definition on uncoated surfaces.
Choosing the right edition depends on the types of materials you plan to print on. If you use multiple media types, the gloss version offers more versatility. If you consistently use matte materials, the matte version delivers superior image contrast.
Q: Can I print UL-Approved labels using the C4000?
A: Yes. iD Partner Portal maintains a UL Card File that authorizes the printing of UL-recognized labels using Epson ColorWorks printers — when paired with specific materials that meet UL durability requirements. Contact our team to ensure you're using the right combination of printer and media for compliance.
Q: Is the C4000 printer suitable for manufacturing environments?
A: Yes. This printer is built for reliable performance in both office and industrial settings. It’s compact enough for desktop use but rugged enough for the factory floor.
Q: Can iD Partner Portal assist with graphic design or label layout for the C4000?
A: Yes. We offer graphic art creation services to help you design labels that are both functional and visually compelling.
Q: What happens if the C4000 requires service?
A: Every Epson ColorWorks printer includes a 1-Year Depot Warranty. For added peace of mind, iD Partner Portal and Epson offers extended service plans so you're covered well beyond the first year.
Q: Will the Epson ColorWorks C4000 print barcodes?
A: Yes! Epson printers support a wide variety of 1D and 2D barcode formats, making them perfect for labeling, tracking and compliance needs.
Q: What if my printer stops working and I need a fast replacement?
A: We recommend enrolling in Epson’s Spare-In-The-Air Service. If your printer encounters an issue, a replacement unit is shipped overnight to minimize downtime.
Q: What is your return policy?
A: All sales are final. Due to manufacturer restrictions, returns cannot be accepted. However, we are committed to supporting your purchase and will work with you to resolve any issues.
Q: What’s included when I purchase the C4000?
A: Each printer includes the core hardware unit, power and USB cables, starter ink cartridges, and a setup guide. Additional resources and technical support are available through iD Partner Portal.
